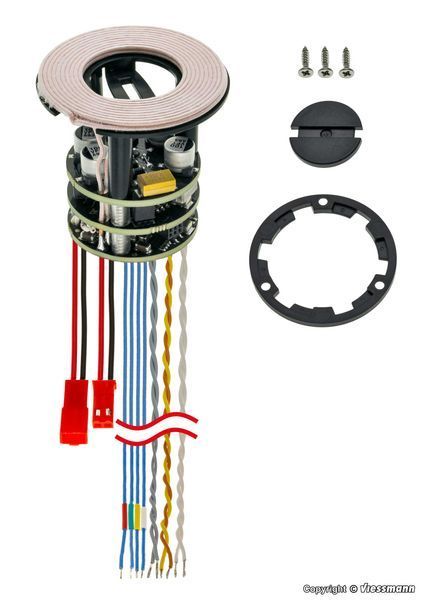

InduktivCharger, Viessmann 8408

InduktivCharger, Viessmann 8408

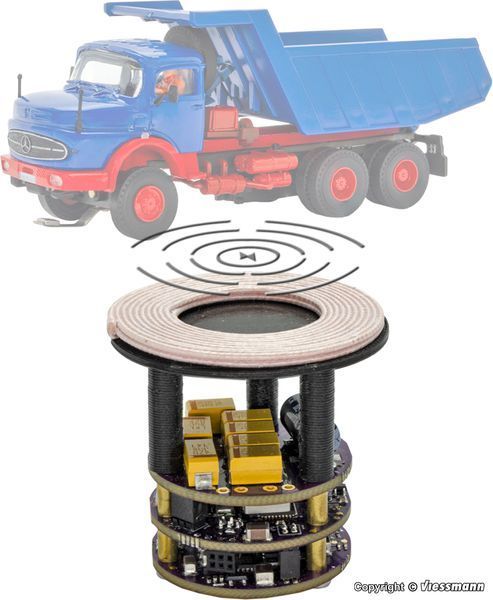

This induction charging module enables wireless recharging of CarMotion models through inductive power transfer.

The module is placed beneath the model, and the vehicle automatically stops above the charging coil for optimal charging, adjusting the current during standby.

Features and Benefits:

• Wireless charging – ideal for long stop locations such as traffic lights, crossings, and fueling stations

• Automatic current regulation – eliminates the risk of overcharging

• Network connectivity – enables the creation of autonomous charging stations, managed via software updates

• Control output for motorized turnouts 8448 – can also control servo drives

• Extended runtime – driving-to-charging ratio of approx. 3:1, allowing near-continuous operation of models

• On/off control – for models equipped with built-in coil 8440

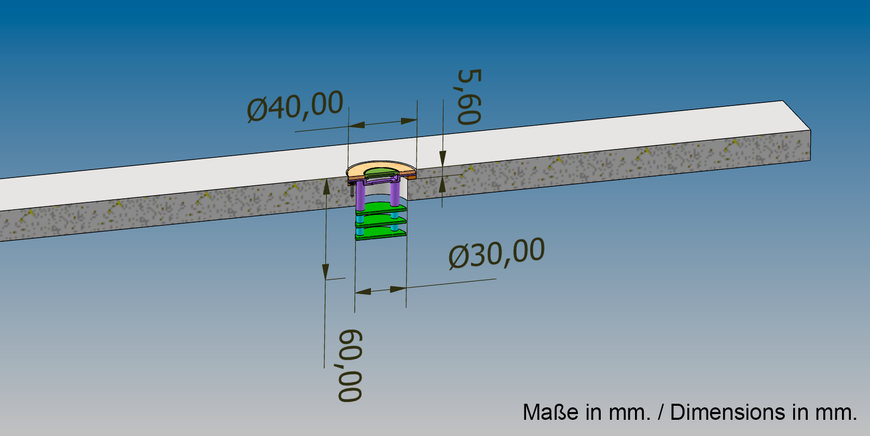

Technical Specifications:

• Charging coil diameter: 40 mm

• Electronics unit diameter: 30 mm

• Module height: 60 mm
